PHP 8 is coming

by Enrico Zimuel
Principal Software Engineer at Elastic

Enrico Zimuel

@ezimuel

Developer since 1996
Principal Engineer at Elastic
Open source contributor and maintainer of elasticsearch-php
Committee member of PHP-FIG
TEDx and international speaker
PHP teacher at ITS ICT Piemonte
Author of books and articles
Co-founder of PUG Torino

PHP 8 beta4

17 September 2020

Installation

Download source code PHP-8.0.0beta4
Compile (for GNU/Linux):
- ./configure --prefix=/opt/php/php8 --enable-opcache --with-zlib --enable-zip --enable-json --enable-sockets --without-pear
- make
- sudo make install
- PHP 8 will be installed in /opt/php/php8
More info: Compiling PHP 8 from source with JIT support

New features (some)

JIT compiler (RFC)
Attributes (RFC)
Constructor property promotion (RFC)
Union types (RFC)
Static return type (RFC)
Weak maps (RFC)
Stringable interface (RFC)

JIT

What's JIT?

A Just-In-Time (JIT) compiler is a feature of the run-time interpreter, that instead of interpreting bytecode every time a method is invoked, will compile the bytecode into machine code, and then invoke this object code instead

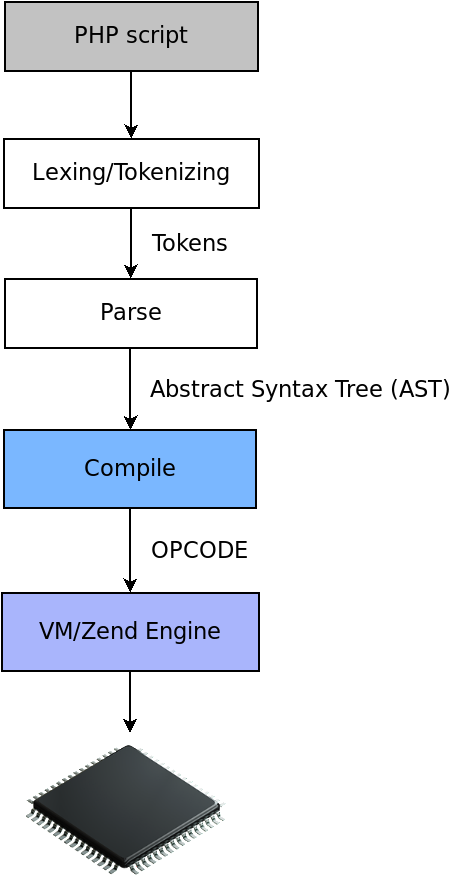

PHP execution

Example


for ($i=0; $i<100; $i++) {
    echo $i;
}

Opcode:


L0 (2):     ASSIGN CV0($i) int(0)
L1 (2):     JMP L4
L2 (3):     ECHO CV0($i)
L3 (2):     PRE_INC CV0($i)
L4 (2):     T1 = IS_SMALLER CV0($i) int(100)
L5 (2):     JMPNZ T1 L2
L6 (5):     RETURN int(1)

php -d opcache.opt_debug_level=0x20000 -d opcache.enable_cli=1 test.php

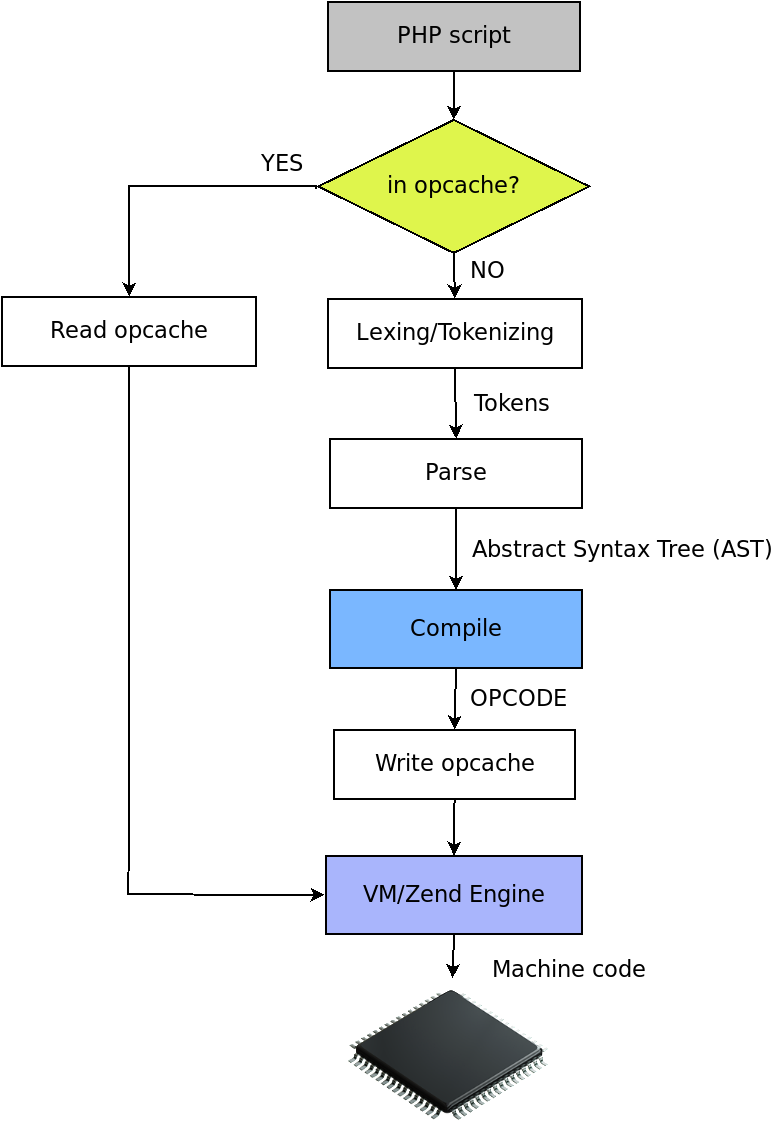

Opcache

JIT

JIT machine code


	sub $0x10, %rsp
	lea 0x50(%r14), %rdi
	cmp $0xa, 0x8(%rdi)
	jnz .L1
	mov (%rdi), %rdi
	cmp $0x0, 0x18(%rdi)
	jnz .L6
	add $0x8, %rdi
.L1:
	test $0x1, 0x9(%rdi)
	jnz .L7
	mov $0x0, (%rdi)
	mov $0x4, 0x8(%rdi)
.L2:
	mov $EG(exception), %rax
	cmp $0x0, (%rax)
	jnz JIT$$exception_handler
	jmp .L4
.L3:
	mov $0x7fcc67e2e630, %r15
	mov $0x561f82773690, %rax
	call *%rax
	mov $EG(exception), %rax
	cmp $0x0, (%rax)
	jnz JIT$$exception_handler
	cmp $0x4, 0x58(%r14)
	jnz .L9
	add $0x1, 0x50(%r14)
.L4:
	mov $EG(vm_interrupt), %rax
	cmp $0x0, (%rax)
	jnz .L11
	cmp $0x4, 0x58(%r14)
	jnz .L12
	cmp $0x64, 0x50(%r14)
	jl .L3
.L5:
	mov $0x7fcc67e2e6b0, %r15
	add $0x10, %rsp
	mov $ZEND_RETURN_SPEC_CONST_LABEL, %rax
	jmp *%rax
	sub $0x10, %rsp
	jmp .L4
.L6:
	mov $0x7fcc67e2e5c0, %rsi
	mov %r15, (%r14)
	mov $zend_jit_assign_const_to_typed_ref, %rax
	call *%rax
	jmp .L2
.L7:
	mov (%rdi), %rax
	mov %rax, (%rsp)
	mov $0x0, (%rdi)
	mov $0x4, 0x8(%rdi)
	mov (%rsp), %rdi
	sub $0x1, (%rdi)
	jnz .L8
	mov %r15, (%r14)
	mov $rc_dtor_func, %rax
	call *%rax
	jmp .L2
.L8:
	mov 0x4(%rdi), %eax
	and $0xfffffc10, %eax
	cmp $0x10, %eax
	jnz .L2
	mov $gc_possible_root, %rax
	call *%rax
	jmp .L2
.L9:
	mov %r15, (%r14)
	lea 0x50(%r14), %rdi
	cmp $0xa, 0x8(%rdi)
	jnz .L10
	mov (%rdi), %rsi
	cmp $0x0, 0x18(%rsi)
	lea 0x8(%rsi), %rdi
	jz .L10
	mov $0x0, %rdx
	mov $zend_jit_pre_inc_typed_ref, %rax
	call *%rax
	mov $EG(exception), %rax
	cmp $0x0, (%rax)
	jnz JIT$$exception_handler
	jmp .L4
.L10:
	mov $increment_function, %rax
	call *%rax
	jmp .L4
.L11:
	mov $0x7fcc67e2e670, %r15
	jmp JIT$$interrupt_handler
.L12:
	cmp $0x5, 0x58(%r14)
	jnz .L13
	mov $0x64, %rax
	vcvtsi2sd %rax, %xmm0, %xmm0
	vucomisd 0x50(%r14), %xmm0
	ja .L3
	jmp .L5
.L13:
	mov $0x7fcc67e2e670, %rax
	mov %rax, (%r14)
	lea 0x50(%r14), %rsi
	mov $0x7fcc67e2e5d0, %rdx
	lea 0x60(%r14), %rdi
	mov $compare_function, %rax
	call *%rax
	mov $EG(exception), %rax
	cmp $0x0, (%rax)
	jnz JIT$$exception_handler_undef
	cmp $0x0, 0x60(%r14)
	jl .L3
	jmp .L5

php -d opcache.enable_cli=1 -d opcache.jit=1235
-d opcache.jit_buffer_size=64M -d opcache.jit_debug=1 test.php

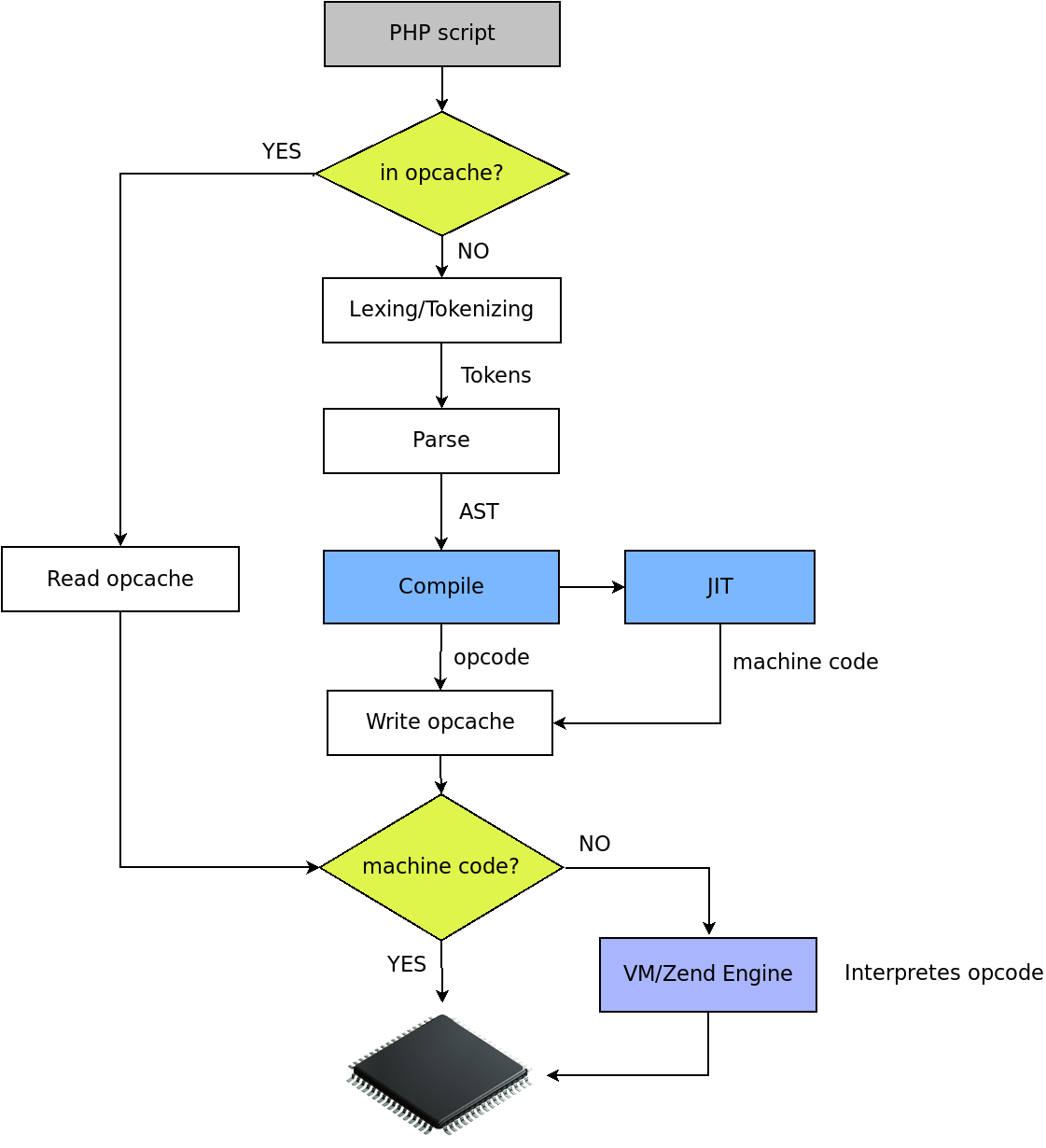

How JIT generate machine code?

JIT configuration (CRTO)

opcache.jit consists of 4 decimal digits, e.g 1235
1 = use AVX instructions (CPU optimization)
2 = Register allocation
3 = profile on the fly and compile hot functions (Trigger)
5 = type inference & procedure analysis (Optimization level)

JIT Trigger

0 = JIT all functions on first script load
1 = JIT functions on first execution
2 = Profile on first request and compile hot functions on second request
3 = Profile on the fly and compile hot functions
4 = Compile functions with @jit tag in doc-comments

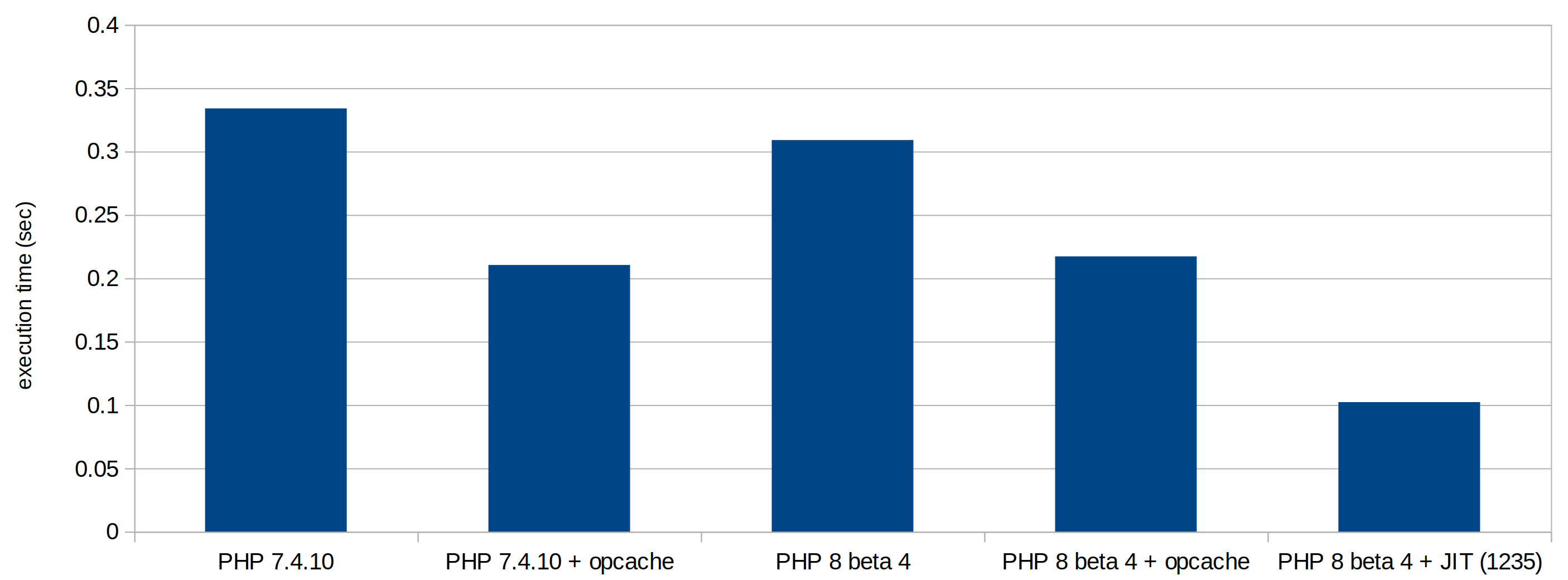

JIT benchmark

Execution of Zend/bench.php (more information)

JIT on WordPress

PHP 8 no JIT: 190 req/sec
PHP 8 + JIT (CTRO 1235): 160 req/sec
PHP 8 + JIT (CTRO 1225): 189 req/sec

Source: PHP 8 et Just In Time Compilation

IO Bound vs. CPU Bound

JIT is useful for CPU intensive application (machine learning, image manipulation, etc).
JIT does not offer improvement for IO Bound application

Attributes

Attributes (RFC)

Attributes add metadata to PHP code: classes, properties, methods, functions
Syntax is #[Attribute], read the Shorter Syntax RFC
This will replace docblocks for adding metadata,
e.g. // @Route("/home")

Custom Attributes

Custom attributes are simple classes, annotated with
#[Attribute]


#[Attribute]
class ListensTo
{
    public string $event;

    public function __construct(string $event)
    {
        $this->event = $event;
    }
}

Custom Attributes (2)


class ProductSubscriber
{
    #[ListensTo(ProductCreated::class)]
    public function onProductCreated(ProductCreated $event) { }

    #[ListensTo(ProductDeleted::class)]
    public function onProductDeleted(ProductDeleted $event) { }
}

Get attributes at runtime


$reflection = new ReflectionClass(ProductSubscriber::class);

foreach ($reflection->getMethods() as $method) {
    foreach ($method->getAttributes(ListensTo::class) as $attr) {
        $listener = $attr->newInstance();
        var_dump($listener);
    }
}
// object(ListensTo)#5 (1) {
//    ["event"]=>
//    string(14) "ProductCreated"
// }
// object(ListensTo)#4 (1) {
//    ["event"]=>
//    string(14) "ProductDeleted"
// }

ReflectionAttribute


class ReflectionAttribute
{
    public function getName(): string;
    public function getArguments(): array;
    public function newInstance(): object;
}

Built-in attributes (WIP)

#[Deprecated], to trigger a deprecated error (PR)


#[Deprecated("use test2() instead")]
function test() { }

test();
// Deprecated: Function test() is deprecated,
// use test2() instead

#[Jit], to enable JIT for a specific function

Constructor Property Promotion

Constructor Property


class Point {
    public float $x;
    public float $y;
    public float $z;

    public function __construct(
        float $x = 0.0,
        float $y = 0.0,
        float $z = 0.0,
    ) {
        $this->x = $x;
        $this->y = $y;
        $this->z = $z;
    }
}

Constructor Property Promotion


class Point {
    public function __construct(
        public float $x = 0.0,
        public float $y = 0.0,
        public float $z = 0.0,
    ) {}
}

Property promotion rules

Only in constructors
No duplicate allowed
Untyped properties are allowed
Combining promoted- and normal properties
Access promoted properties from the constructor body

More information: Brent Roose, PHP 8: Constructor property promotion

Union types

Union types (RFC)


class Number {
    private int|float $number;

    public function setNumber(int|float $number): void {
        $this->number = $number;
    }

    public function getNumber(): int|float {
        return $this->number;
    }
}

Static return type

Static return type (RFC)


class A {
    public function __construct($params = []) {
        $this->params = $params;
    }

    public function create($params): static {
        return new static($params);
    }
}
class B extends A {
}

$b = new B();
$result = $b->create(['x' => 'y']);
var_dump($result); // object(B) {["params"]=> ["x" => "y"]}

Fluent interfaces


class A {
    public function doWhatever(): static {
        // Do whatever.
        return $this;
    }
}
$a = new A();
$result = $a->doWhatever(); // $result === $a

Weak maps

Weak maps (RFC)

To provide "weakly referenced" map objects


$map = new WeakMap;
$obj = new stdClass;
$map[$obj] = 42;
var_dump($map);
// object(WeakMap)#1 (1) {
//   [0]=> [
//     "key" => object(stdClass)#2,
//     "value" => int(42)
//   ]
// }

// The object is destroyed here, key automatically removed
unset($obj);
var_dump($map);
// object(WeakMap)#1 (0) { }

Example: caching objects


class Foo {
    private WeakMap $cache;

    public function getSomethingWithCaching(object $obj) {
        return $this->cache[$obj] ??= $this->somethingExpensive($obj);
    }
}

??= Null Coalescing Assignment (PHP 7.4+)

Stringable interface

Stringable interface (RFC)


interface Stringable
{
    public function __toString(): string;
}

Stringable interface is automatically added to classes that implement the __toString() method

PHP 8 Release date

RC1: Oct 01 2020
GA: Nov 26 2020
Source: PHP 8 release date

References

PHP RFC official page
PHP RFC Watch
Brent Roose, New in PHP 8
Brent Roose, Attributes in PHP 8
Brent Roose, PHP 8: Constructor property promotion
Eli White, What’s in PHP Eight?, php[architect], Vol.19 - Issue 5, May 2020
Arkadiusz Kondas, Compiling PHP 8 from source with JIT support
Níckolas Da Silva, Understanding PHP 8's JIT
Benoit Jacquemont, PHP 8 et Just In Time Compilation, PHPForum 2019
Nikita Popov, PHP 7 Virtual Machine
Anthony Ferrara, A PHP Compiler, aka The FFI Rabbit Hole
James Titcumb, Climbing the Abstract Syntax Tree, PHP UK 2018
