Encryption, authentication and data integrity in PHP 7

by Enrico Zimuel / @ezimuel
Senior Software Engineer
Zend Technologies a Rogue Wave Company

21th October 2016 - ZendCon - Las Vegas

About me

Developer since 1996
Senior Software Engineer at Zend, a Rogue Wave Company
Research in computer science at Amsterdam University
Open source contributor of Apigility and Zend Framework
TEDx and international speaker
Co-founder of PUG Torino (Italy)

Encryption in PHP

~~Mcrypt extension~~, symmetric encryption (outdated)
OpenSSL extension, public key and symmetric encryption

Mcrypt (outdated)

Ciphers: rijndael (AES), Twofish, Blowfish, DES, 3DES, etc
Block modes: CBC, CFB, CTR, OFB, NOFB, NCFB
Padding: zero padding, padded with '\0'
No Authentication!
Deprecated in PHP 7.1

OpenSSL

Ciphers: RSA, AES, CAMELLIA, DES, RC2, RC4, check with openssl_get_cipher_methods()
Block modes: CBC, CFB, CTR, ECB, XTS
Padding: PKCS#1, No padding, SSLV23, PKCS1_OAEP
Authenticated encryption: GCM, CCM (AEAD proposal for PHP 7.1)

Symmetric encryption

Choose the algorithm, e.g. AES (FIPS 197)
Choose the mode of operation, e.g. CBC
Choose the padding mode, e.g. #PKCS7
Build an encryption key using a Key Derivation Function (KDF), e.g. PBKDF2
Encrypt-then-authenticate using, e.g. HMAC + SHA-256

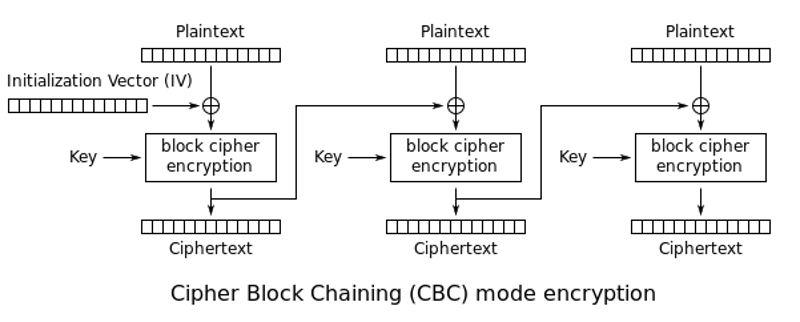

CBC encryption

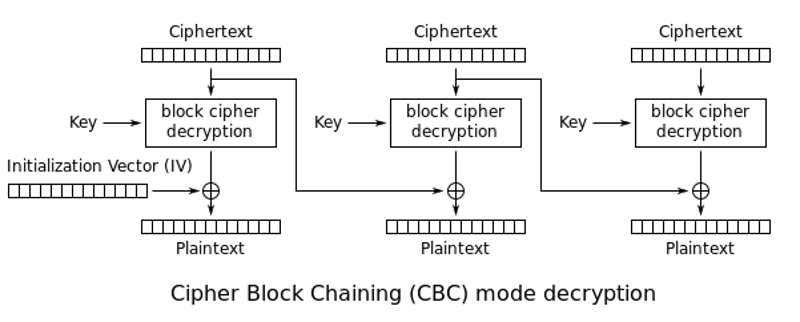

CBC decryption

PBKDF2

PBKDF2 (Password-Based Key Derivation Function 2) is a key derivation function RFC 2898

In PHP:


hash_pbkdf2($algo, $password, $salt, $iterations, $length=0, $raw=false)

We will use SHA-256 as $algo
In 2016 a reasonable $iterations is around 80k
Source: Enough With the Salts: Updates on Secure Password Schemes

HMAC

Hash-based message authentication code (RFC 2140)

where H is hash function, K is key, K' derivated key, opad is outer padding (0x5c), ipad is inner padding (0x36), ⊕ is XOR, and || is concatenation

In PHP:


hash_hmac ($algo, $data, $key, $raw_output = false)
hash_hmac_file ($algo, $filename, $key, $raw_output = false)

We will use SHA-256 as $algo

Why we need authentication?

Encryption only provides confidentiality
An attacker can easily alter the encrypted message
Padding Oracle Attacks can be applied to retrieve the plaintext without the key!

Padding Oracle Attack

Side channel attack which is performed on the padding of a cryptographic message
Discovered in 2001 by Serge Vaudenay
Works on ECB, CBC, OAEP modes for all the block ciphers
In 2010 the attack was applied to several web application frameworks, including JavaServer Faces, Ruby on Rails and ASP.NET.
Can be prevented using authentication

Encryption


function encrypt(string $text, string $key): string {
  $iv      = random_bytes(16); // iv size for aes-256-cbc
  $keys    = hash_pbkdf2('sha256', $key, $iv, 80000, 64, true);
  $encKey  = mb_substr($keys, 0, 32, '8bit');
  $hmacKey = mb_substr($keys, 32, null, '8bit');

  $ciphertext = openssl_encrypt($text, 'aes-256-cbc', $encKey,
    OPENSSL_RAW_DATA, $iv
  );

  $hmac = hash_hmac('sha256', $iv . $ciphertext, $hmacKey);
  return $hmac . $iv . $ciphertext;
}

Decryption


function decrypt(string $text, string $key): string {
  $hmac       = mb_substr($text, 0, 64, '8bit');
  $iv         = mb_substr($text, 64, 16, '8bit');
  $ciphertext = mb_substr($text, 80, null, '8bit');

  $keys    = hash_pbkdf2('sha256', $key, $iv, 80000, 64, true);
  $encKey  = mb_substr($keys, 0, 32, '8bit');
  $hmacKey = mb_substr($keys, 32, null, '8bit');
  $hmacNow = hash_hmac('sha256', $iv . $ciphertext, $hmacKey);
  if (! hash_equals($hmac, $hmacNow)) {
    throw new Exception('Authentication error!');
  }
  return openssl_decrypt($ciphertext, 'aes-256-cbc', $encKey,
    OPENSSL_RAW_DATA, $iv
  );
}

Timing attacks?

A timing attack is a side channel attack in which the attacker attempts to compromise a cryptosystem by analyzing the time taken to execute cryptographic algorithms

From Wikipedia

To compare two strings in PHP use
hash_equals($known, $user) to prevent timing attacks

Authenticated Encryption

PHP 7.1 provides AEAD support for OpenSSL:


openssl_encrypt ($data, $method, $key, $options = 0, $iv = "",
                 &$tag = null, $aad = "", $tag_len = 16)
openssl_decrypt ($data, $method, $key, $options = 0, $iv = "",
                 $tag = null, $aad = "")

Example


$data = 'Hello World!';
$key  = random_bytes(32); // 256 bit

// GCM and CCM
$modes = ['aes-256-gcm', 'aes-256-ccm'];
foreach ($modes as $mode) {
  $iv = random_bytes(openssl_cipher_iv_length($mode));
  $ciphertext = openssl_encrypt($data, $mode, $key,
    OPENSSL_RAW_DATA, $iv, $tag
  );
  printf("%s, tag size: %d bytes\n", $mode, mb_strlen($tag, '8bit'));
  $text = openssl_decrypt($ciphertext, $mode, $key,
    OPENSSL_RAW_DATA, $iv, $tag
  );
  printf("Decrypt %s\n\n", $text === $data ? 'Ok' : 'Failed');
}

Best practices for encryption

Use AES as standard algorithm
Use CBC or CTR mode
Use random IVs, different for each encryption
Generate a encryption key from user's password using a KDF function, e.g. PBKDF2
ALWAYS use authenticated encryption algorithms
Secure random number: random_int() or random_bytes()

Public key encryption

&

Digital signature

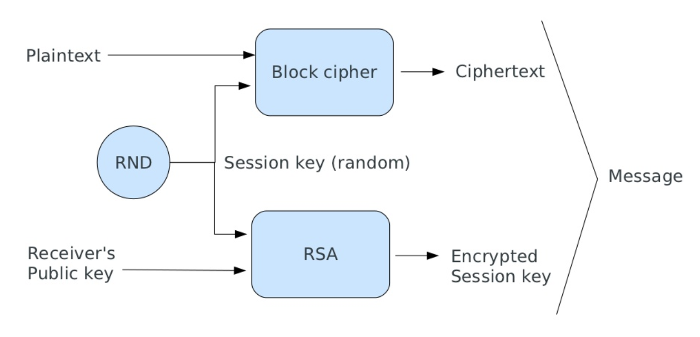

Hybrid cryptosystem

Public key algorithms are too slow to encrypt a full text message
We need a different approach (Hybrid cryptosystem):
- generate a random session key;
- encrypt the session key using a public key algorithm;
- encrypt the message with a symmetric cipher using the session key;
- send the ciphertext and the encrypted session key;

Public and private key


// Generate public and private keys
$keys = openssl_pkey_new(array(
  "private_key_bits" => 4096,
  "private_key_type" => OPENSSL_KEYTYPE_RSA,
));

// Store the private key in a file
$passphrase = 'test';
openssl_pkey_export_to_file($keys, 'private.key', $passphrase);

// Store the public key in a file
$details   = openssl_pkey_get_details($keys);
$publicKey = $details['key'];
file_put_contents('public.key', $publicKey);

Hybrid encryption


$msg = 'This is the secret message';
// Encryption
$key = random_bytes(32);
openssl_public_encrypt($key, $encKey, $publicKey);
$ciphertext = encrypt($msg, $key);
file_put_contents('encrypted.msg', $encKey . $ciphertext);
// Decryption
$ciphertext = file_get_contents('encrypted.msg');
$encKey     = mb_substr($ciphertext, 0, 512, '8bit');
$ciphertext = mb_substr($ciphertext, 512, null, '8bit');
$privateKey = openssl_pkey_get_private(
  'file:///path/to/private.key',
  $passphrase // to access the private key
);
openssl_private_decrypt($encKey, $key, $privateKey);
$result = decrypt($ciphertext, $key); // $result === $msg

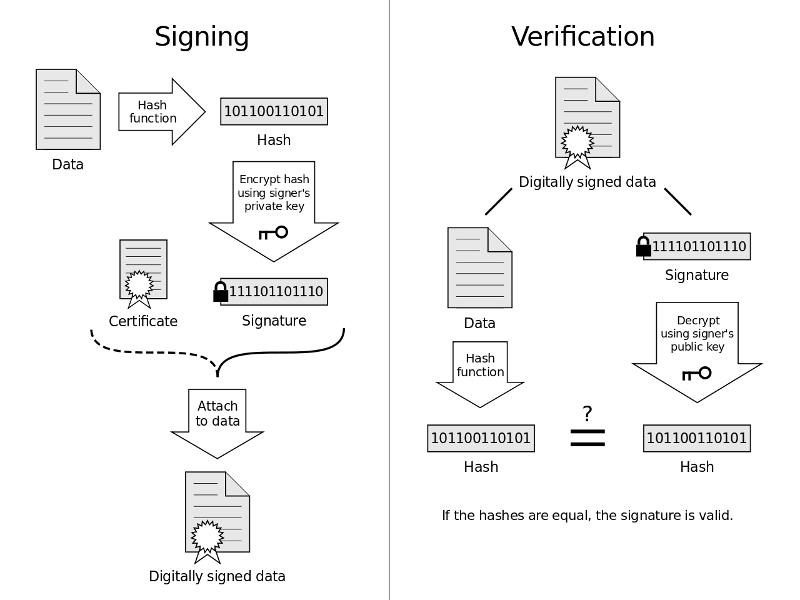

Digital signature

How to provide authentication and non-repudiation?
A digital signature is a mathematical scheme for demonstrating the authenticity of a digital message or document
Commonly used for software distribution, financial transactions, and in other cases where it is important to detect forgery or tampering

Signature with OpenSSL


// Compute the signature
$priKey = openssl_pkey_get_private(
  'file:///path/to/private.key',
  $passphrase
);
$data = file_get_contents('/path/to/file_to_sign');
openssl_sign($data, $sign, $priKey, "sha256");
printf("Signature : %s\n", base64_encode($sign));

// Verify the signature
$pubKey = openssl_pkey_get_public(
  'file:///path/to/public.key'
);
$result = openssl_verify($data, $sign, $pubKey, "sha256");

echo $result === 1 ? 'Signature ok' : 'Signature not valid';
